Datapoints for p + w176 -> re177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.059939e-136 |
| 0.15 | 5.412186e-81 |
| 0.2 | 5.924504e-54 |
| 0.3 | 3.177707e-30 |
| 0.4 | 4.297517e-21 |
| 0.5 | 5.002218e-17 |
| 0.6 | 5.212730e-15 |
| 0.7 | 7.012298e-14 |
| 0.8 | 3.826606e-13 |
| 0.9 | 1.428842e-12 |
| 1 | 4.663036e-12 |
| 1.5 | 2.185589e-09 |
| 2 | 1.648838e-06 |
| 2.5 | 6.643891e-04 |
| 3 | 8.097098e-02 |
| 3.5 | 2.655475e+00 |
| 4 | 2.591533e+01 |
| 4.5 | 9.118888e+01 |
| 5 | 1.445213e+02 |
| 6 | 8.055578e+01 |
| 7 | 2.310806e+01 |
| 8 | 1.346384e+01 |
| 9 | 4.864674e+01 |
| 10 | 2.686461e+03 |

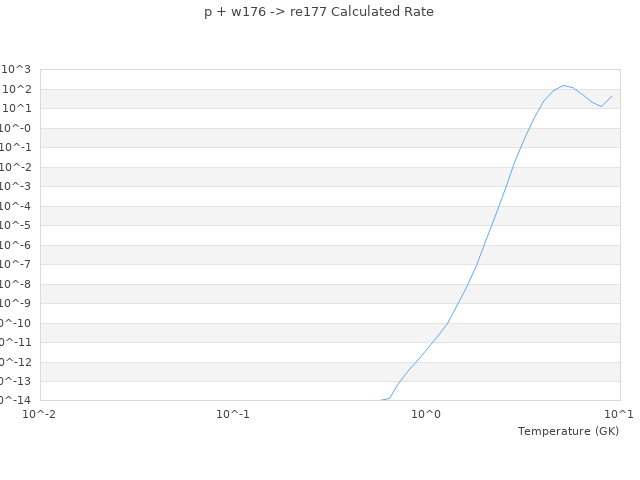

| View Graph | |
