Datapoints for n + w177 -> he4 + hf174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.887277e+04 |
| 0.15 | 3.837983e+04 |
| 0.2 | 4.414294e+04 |
| 0.3 | 4.946953e+04 |
| 0.4 | 5.059683e+04 |
| 0.5 | 4.988193e+04 |
| 0.6 | 4.840478e+04 |
| 0.7 | 4.668234e+04 |
| 0.8 | 4.496500e+04 |
| 0.9 | 4.337160e+04 |
| 1 | 4.195454e+04 |
| 1.5 | 3.773587e+04 |
| 2 | 3.757367e+04 |
| 2.5 | 4.072266e+04 |
| 3 | 4.718582e+04 |
| 3.5 | 5.761367e+04 |
| 4 | 7.329896e+04 |
| 4.5 | 9.632182e+04 |
| 5 | 1.298387e+05 |
| 6 | 2.493212e+05 |
| 7 | 5.020670e+05 |
| 8 | 1.036337e+06 |
| 9 | 2.157173e+06 |
| 10 | 4.473841e+06 |

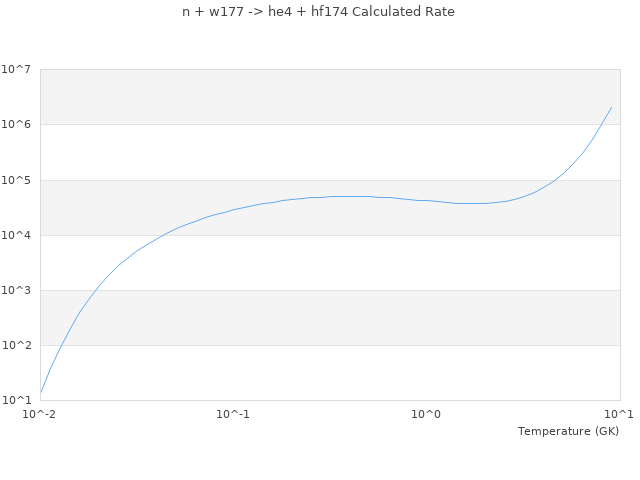

| View Graph | |
