Datapoints for p + w192 -> re193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.385526e-142 |
| 0.15 | 5.298229e-85 |
| 0.2 | 2.202258e-57 |
| 0.3 | 3.716301e-33 |
| 0.4 | 7.583199e-24 |
| 0.5 | 1.027357e-19 |
| 0.6 | 1.118564e-17 |
| 0.7 | 1.497353e-16 |
| 0.8 | 7.948743e-16 |
| 0.9 | 2.857628e-15 |
| 1 | 8.941099e-15 |
| 1.5 | 3.403265e-12 |
| 2 | 2.143593e-09 |
| 2.5 | 7.316404e-07 |
| 3 | 7.580774e-05 |
| 3.5 | 2.113421e-03 |
| 4 | 1.753273e-02 |
| 4.5 | 5.254252e-02 |
| 5 | 7.124852e-02 |
| 6 | 2.982341e-02 |
| 7 | 6.770324e-03 |
| 8 | 3.353958e-03 |
| 9 | 1.124717e-02 |
| 10 | 6.374098e-01 |

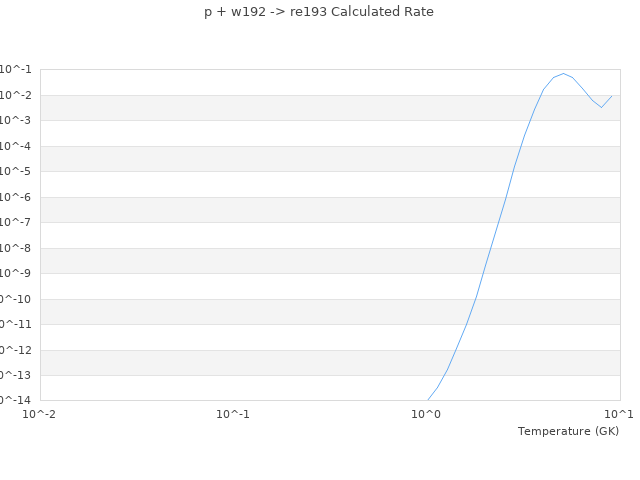

| View Graph | |
