Datapoints for n + w196 -> w197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.796143e+06 |
| 0.15 | 2.221246e+06 |
| 0.2 | 2.290400e+06 |
| 0.3 | 2.179961e+06 |
| 0.4 | 2.083816e+06 |
| 0.5 | 2.058461e+06 |
| 0.6 | 2.092544e+06 |
| 0.7 | 2.172072e+06 |
| 0.8 | 2.286823e+06 |
| 0.9 | 2.429574e+06 |
| 1 | 2.594928e+06 |
| 1.5 | 3.622038e+06 |
| 2 | 4.669483e+06 |
| 2.5 | 5.364467e+06 |
| 3 | 5.489755e+06 |
| 3.5 | 5.048772e+06 |
| 4 | 4.217744e+06 |
| 4.5 | 3.233956e+06 |
| 5 | 2.297250e+06 |
| 6 | 9.516349e+05 |
| 7 | 3.164982e+05 |
| 8 | 8.808132e+04 |
| 9 | 2.118053e+04 |
| 10 | 4.513469e+03 |

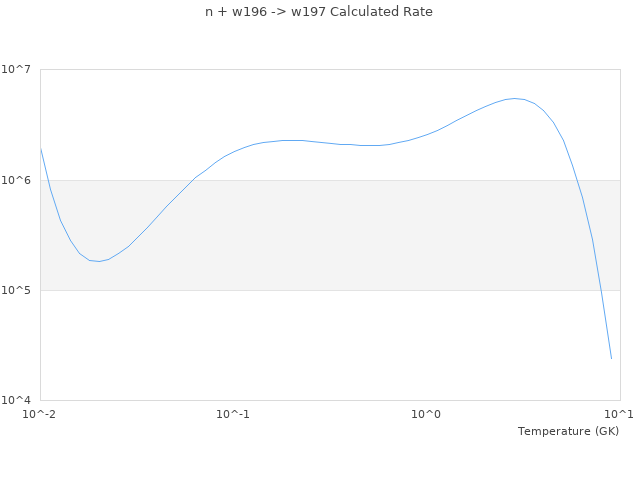

| View Graph | |
