Datapoints for p + w196 -> re197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.518930e-143 |
| 0.15 | 6.040510e-86 |
| 0.2 | 3.560585e-58 |
| 0.3 | 8.218279e-34 |
| 0.4 | 1.916221e-24 |
| 0.5 | 2.791194e-20 |
| 0.6 | 3.187926e-18 |
| 0.7 | 4.427070e-17 |
| 0.8 | 2.424658e-16 |
| 0.9 | 8.966595e-16 |
| 1 | 2.880716e-15 |
| 1.5 | 1.232288e-12 |
| 2 | 8.539823e-10 |
| 2.5 | 3.143783e-07 |
| 3 | 3.454435e-05 |
| 3.5 | 1.008141e-03 |
| 4 | 8.676226e-03 |
| 4.5 | 2.682729e-02 |
| 5 | 3.744917e-02 |
| 6 | 1.667570e-02 |
| 7 | 4.105597e-03 |
| 8 | 2.278651e-03 |
| 9 | 8.931846e-03 |
| 10 | 6.220156e-01 |

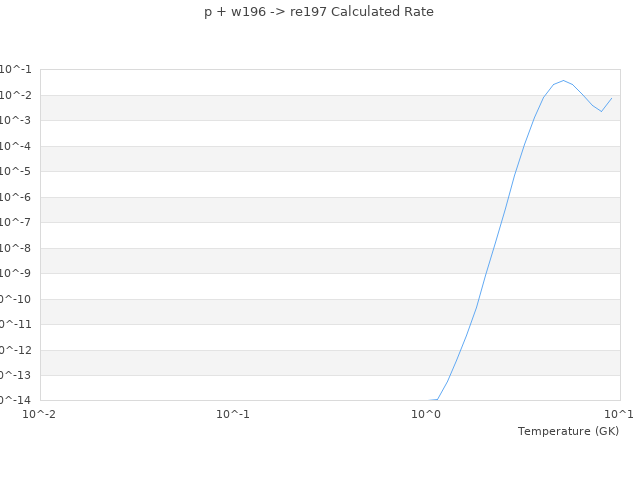

| View Graph | |
