Datapoints for he4 + w196 -> os200
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 6.167721e-257 |
| 0.2 | 2.842275e-201 |
| 0.3 | 1.356694e-139 |
| 0.4 | 2.369529e-106 |
| 0.5 | 9.362413e-86 |
| 0.6 | 7.231668e-72 |
| 0.7 | 6.016733e-62 |
| 0.8 | 1.485652e-54 |
| 0.9 | 7.318734e-49 |
| 1 | 2.316883e-44 |
| 1.5 | 2.787048e-31 |
| 2 | 5.357872e-25 |
| 2.5 | 3.170525e-21 |
| 3 | 1.262740e-18 |
| 3.5 | 1.140907e-16 |
| 4 | 4.073346e-15 |
| 4.5 | 7.622149e-14 |
| 5 | 8.744934e-13 |
| 6 | 3.736801e-11 |
| 7 | 4.883448e-10 |
| 8 | 2.431206e-09 |
| 9 | 5.296515e-09 |
| 10 | 5.587601e-09 |

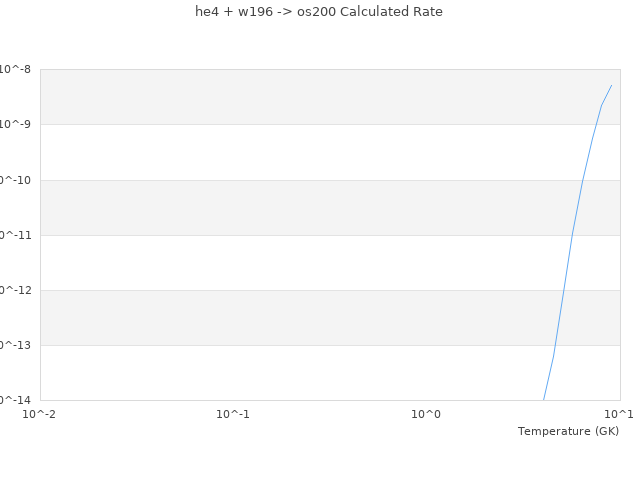

| View Graph | |
