Datapoints for os217 -> he4 + w213
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 3.419368e-268 |
| 0.3 | 1.390303e-182 |
| 0.4 | 2.269437e-137 |
| 0.5 | 1.799849e-109 |
| 0.6 | 1.368054e-90 |
| 0.7 | 5.373320e-77 |
| 0.8 | 9.262482e-67 |
| 0.9 | 8.764829e-59 |
| 1 | 2.126516e-52 |
| 1.5 | 3.125729e-33 |
| 2 | 1.403721e-23 |
| 2.5 | 1.098054e-17 |
| 3 | 1.147874e-13 |
| 3.5 | 9.897346e-11 |
| 4 | 1.723043e-08 |
| 4.5 | 9.927678e-07 |
| 5 | 2.550907e-05 |
| 6 | 3.047711e-03 |
| 7 | 7.620977e-02 |
| 8 | 6.757783e-01 |
| 9 | 2.968013e+00 |
| 10 | 8.145374e+00 |

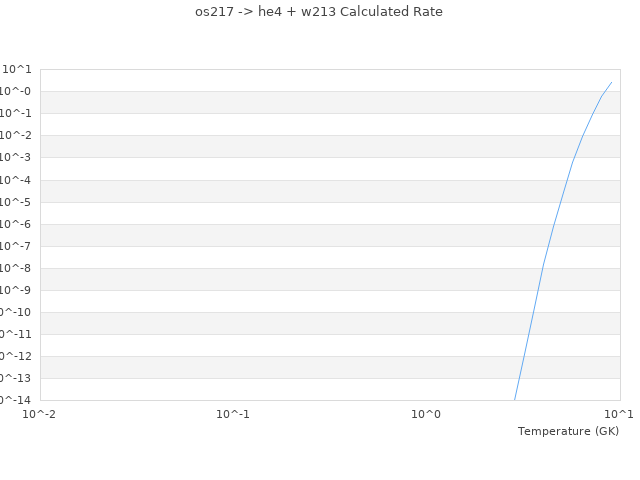

| View Graph | |
