Datapoints for os226 -> he4 + w222
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-320 |
| 0.3 | 1.454733e-217 |
| 0.4 | 7.306853e-164 |
| 0.5 | 6.754929e-131 |
| 0.6 | 1.209847e-108 |
| 0.7 | 1.229598e-92 |
| 0.8 | 1.393970e-80 |
| 0.9 | 3.500495e-71 |
| 1 | 1.197283e-63 |
| 1.5 | 6.265189e-41 |
| 2 | 2.156645e-29 |
| 2.5 | 2.580334e-22 |
| 3 | 1.738326e-17 |
| 3.5 | 5.669966e-14 |
| 4 | 2.612273e-11 |
| 4.5 | 3.094488e-09 |
| 5 | 1.359884e-07 |
| 6 | 3.267187e-05 |
| 7 | 1.208898e-03 |
| 8 | 1.358856e-02 |
| 9 | 7.167940e-02 |
| 10 | 2.403399e-01 |

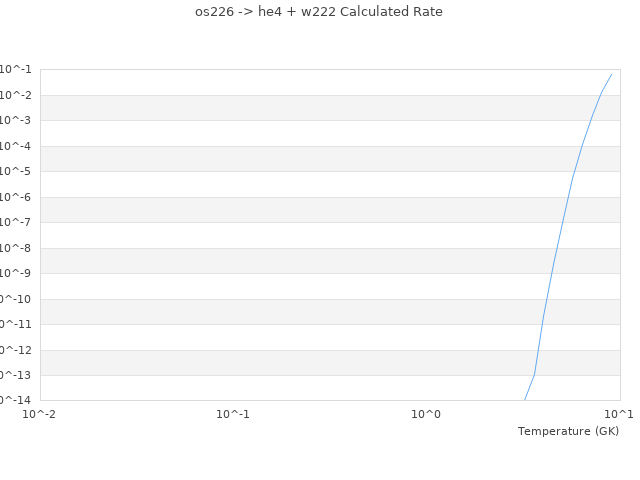

| View Graph | |
