Datapoints for os247 -> he4 + w243
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 4.831859e-273 |
| 0.4 | 2.058535e-205 |
| 0.5 | 4.789440e-164 |
| 0.6 | 3.503229e-136 |
| 0.7 | 3.608691e-116 |
| 0.8 | 4.068954e-101 |
| 0.9 | 2.151384e-89 |
| 1 | 5.216126e-80 |
| 1.5 | 8.134067e-52 |
| 2 | 1.302245e-37 |
| 2.5 | 5.877277e-29 |
| 3 | 4.456954e-23 |
| 3.5 | 8.420660e-19 |
| 4 | 1.503956e-15 |
| 4.5 | 5.313395e-13 |
| 5 | 5.797867e-11 |
| 6 | 5.873713e-08 |
| 7 | 6.375441e-06 |
| 8 | 1.586209e-04 |
| 9 | 1.445687e-03 |
| 10 | 6.626440e-03 |

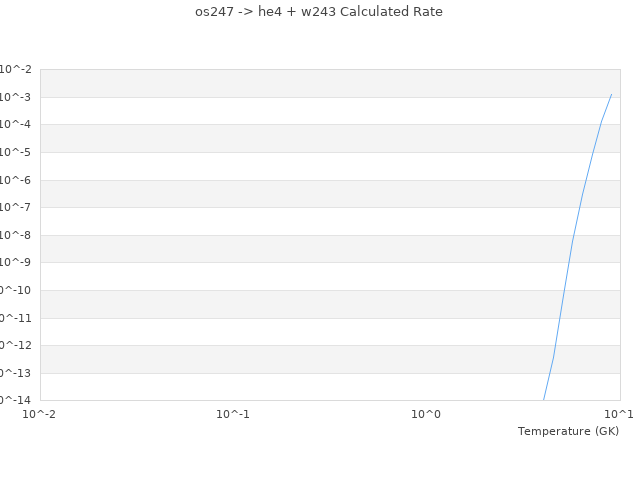

| View Graph | |
