Datapoints for ir174 -> he4 + re170
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.027883e-291 |
| 0.15 | 5.475728e-184 |
| 0.2 | 4.767463e-126 |
| 0.3 | 1.384709e-67 |
| 0.4 | 5.198056e-40 |
| 0.5 | 4.938161e-25 |
| 0.6 | 3.584528e-16 |
| 0.7 | 1.296579e-10 |
| 0.8 | 5.716813e-07 |
| 0.9 | 1.718597e-04 |
| 1 | 9.460426e-03 |
| 1.5 | 9.591787e+01 |
| 2 | 5.165386e+03 |
| 2.5 | 1.222492e+05 |
| 3 | 2.381932e+06 |
| 3.5 | 3.855903e+07 |
| 4 | 4.835508e+08 |
| 4.5 | 4.470626e+09 |
| 5 | 2.992329e+10 |
| 6 | 5.313313e+11 |
| 7 | 3.370987e+12 |
| 8 | 1.059345e+13 |
| 9 | 2.333959e+13 |
| 10 | 5.022822e+13 |

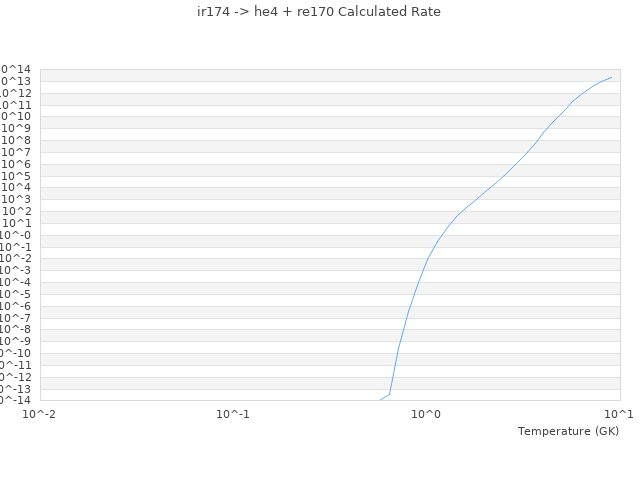

| View Graph | |
