Datapoints for p + re171 -> os172
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.161825e-136 |
| 0.15 | 1.933612e-81 |
| 0.2 | 1.280324e-54 |
| 0.3 | 7.536747e-31 |
| 0.4 | 1.573467e-21 |
| 0.5 | 2.822844e-17 |
| 0.6 | 4.224120e-15 |
| 0.7 | 7.553014e-14 |
| 0.8 | 5.116574e-13 |
| 0.9 | 2.241001e-12 |
| 1 | 8.194676e-12 |
| 1.5 | 4.473353e-09 |
| 2 | 2.923082e-06 |
| 2.5 | 9.718771e-04 |
| 3 | 1.016727e-01 |
| 3.5 | 3.064813e+00 |
| 4 | 2.958842e+01 |
| 4.5 | 1.103203e+02 |
| 5 | 1.967211e+02 |
| 6 | 1.596451e+02 |
| 7 | 7.530029e+01 |
| 8 | 7.608100e+01 |
| 9 | 4.749932e+02 |
| 10 | 4.311701e+04 |

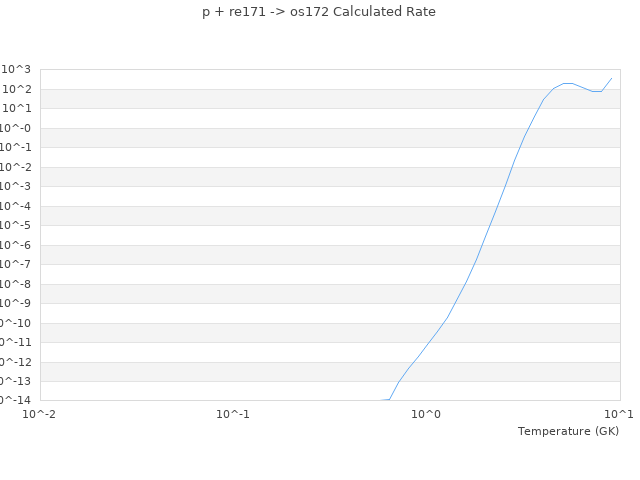

| View Graph | |
