Datapoints for p + re175 -> os176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.740959e-138 |
| 0.15 | 7.661613e-82 |
| 0.2 | 1.298464e-54 |
| 0.3 | 1.299273e-30 |
| 0.4 | 2.612853e-21 |
| 0.5 | 3.926961e-17 |
| 0.6 | 4.823620e-15 |
| 0.7 | 7.196834e-14 |
| 0.8 | 4.177833e-13 |
| 0.9 | 1.611944e-12 |
| 1 | 5.325700e-12 |
| 1.5 | 2.294626e-09 |
| 2 | 1.502616e-06 |
| 2.5 | 5.424556e-04 |
| 3 | 6.235750e-02 |
| 3.5 | 2.030804e+00 |
| 4 | 2.059608e+01 |
| 4.5 | 7.822296e+01 |
| 5 | 1.379439e+02 |
| 6 | 1.015367e+02 |
| 7 | 4.037639e+01 |
| 8 | 3.302808e+01 |
| 9 | 1.650588e+02 |
| 10 | 1.215734e+04 |

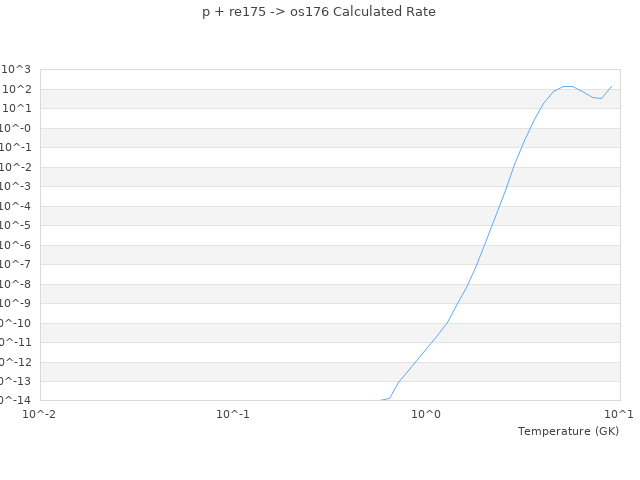

| View Graph | |
