Datapoints for n + re177 -> p + w177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.431077e+03 |
| 0.15 | 6.352919e+03 |
| 0.2 | 8.113149e+03 |
| 0.3 | 1.103269e+04 |
| 0.4 | 1.331585e+04 |
| 0.5 | 1.519908e+04 |
| 0.6 | 1.686056e+04 |
| 0.7 | 1.842200e+04 |
| 0.8 | 1.996687e+04 |
| 0.9 | 2.155462e+04 |
| 1 | 2.323010e+04 |
| 1.5 | 3.406188e+04 |
| 2 | 5.169359e+04 |
| 2.5 | 8.072998e+04 |
| 3 | 1.280831e+05 |
| 3.5 | 2.041393e+05 |
| 4 | 3.239625e+05 |
| 4.5 | 5.084241e+05 |
| 5 | 7.849115e+05 |
| 6 | 1.753059e+06 |
| 7 | 3.524547e+06 |
| 8 | 6.282608e+06 |
| 9 | 9.830607e+06 |
| 10 | 1.341376e+07 |

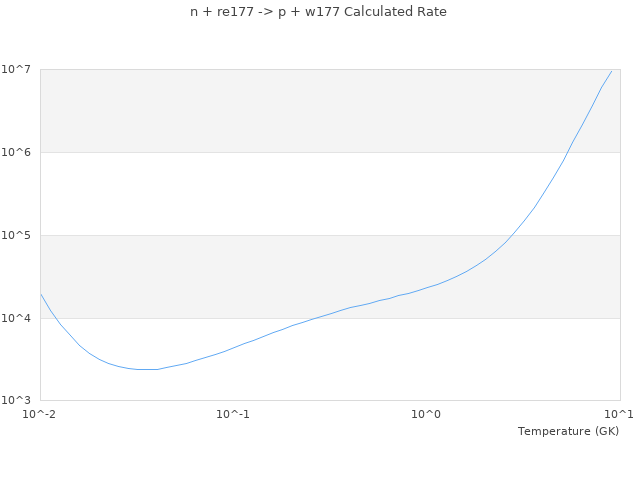

| View Graph | |
