Datapoints for p + re177 -> os178
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.784913e-138 |
| 0.15 | 1.831168e-81 |
| 0.2 | 3.982743e-54 |
| 0.3 | 3.831363e-30 |
| 0.4 | 6.263510e-21 |
| 0.5 | 7.638010e-17 |
| 0.6 | 7.855967e-15 |
| 0.7 | 1.016291e-13 |
| 0.8 | 5.275884e-13 |
| 0.9 | 1.867554e-12 |
| 1 | 5.778798e-12 |
| 1.5 | 2.162530e-09 |
| 2 | 1.404183e-06 |
| 2.5 | 5.144212e-04 |
| 3 | 5.916217e-02 |
| 3.5 | 1.879297e+00 |
| 4 | 1.810788e+01 |
| 4.5 | 6.384890e+01 |
| 5 | 1.026355e+02 |
| 6 | 6.064044e+01 |
| 7 | 1.908233e+01 |
| 8 | 1.258509e+01 |
| 9 | 5.306533e+01 |
| 10 | 3.526204e+03 |

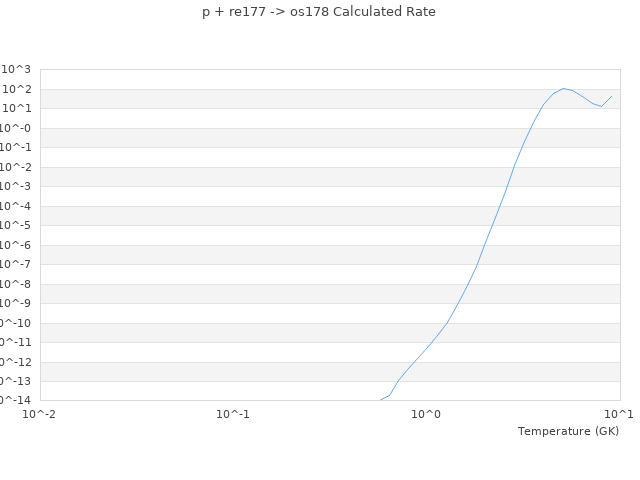

| View Graph | |
