Datapoints for ir181 -> he4 + re177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.171358e-297 |
| 0.15 | 4.315262e-191 |
| 0.2 | 4.739026e-134 |
| 0.3 | 4.790002e-76 |
| 0.4 | 2.822928e-48 |
| 0.5 | 6.751949e-33 |
| 0.6 | 1.410113e-23 |
| 0.7 | 1.475334e-17 |
| 0.8 | 1.797619e-13 |
| 0.9 | 1.399496e-10 |
| 1 | 1.859543e-08 |
| 1.5 | 5.913095e-03 |
| 2 | 3.027742e+00 |
| 2.5 | 3.187171e+02 |
| 3 | 1.683517e+04 |
| 3.5 | 5.295064e+05 |
| 4 | 1.025405e+07 |
| 4.5 | 1.246464e+08 |
| 5 | 9.793393e+08 |
| 6 | 1.933054e+10 |
| 7 | 1.169671e+11 |
| 8 | 3.318451e+11 |
| 9 | 6.622596e+11 |
| 10 | 1.342373e+12 |

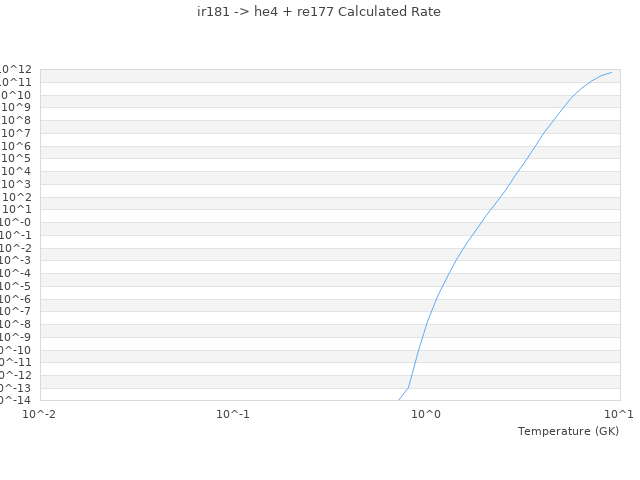

| View Graph | |
