Datapoints for p + re187 -> os188
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.093782e-139 |
| 0.15 | 4.286126e-83 |
| 0.2 | 1.129485e-55 |
| 0.3 | 1.155349e-31 |
| 0.4 | 1.838710e-22 |
| 0.5 | 2.176160e-18 |
| 0.6 | 2.192552e-16 |
| 0.7 | 2.802123e-15 |
| 0.8 | 1.445092e-14 |
| 0.9 | 5.096107e-14 |
| 1 | 1.572137e-13 |
| 1.5 | 5.634384e-11 |
| 2 | 3.234125e-08 |
| 2.5 | 9.699174e-06 |
| 3 | 8.621741e-04 |
| 3.5 | 2.038726e-02 |
| 4 | 1.432771e-01 |
| 4.5 | 3.661917e-01 |
| 5 | 4.289890e-01 |
| 6 | 1.418860e-01 |
| 7 | 2.806401e-02 |
| 8 | 1.359659e-02 |
| 9 | 5.064005e-02 |
| 10 | 3.648184e+00 |

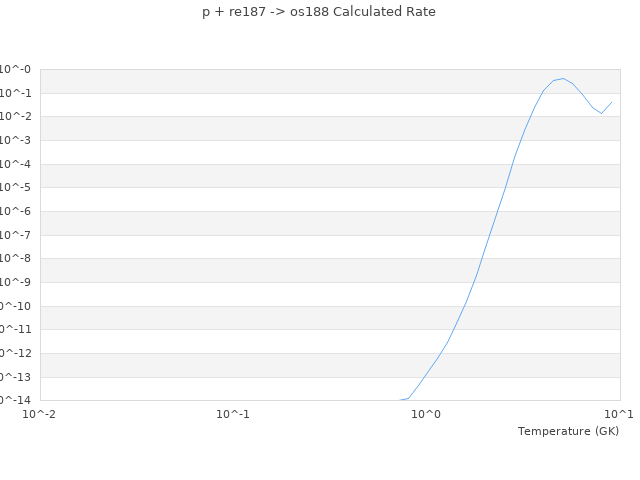

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
