Datapoints for he4 + re192 -> ir196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 2.599188e-259 |
| 0.2 | 3.043790e-196 |
| 0.3 | 8.426563e-130 |
| 0.4 | 4.901469e-96 |
| 0.5 | 4.242235e-76 |
| 0.6 | 3.431820e-63 |
| 0.7 | 2.778500e-54 |
| 0.8 | 7.831895e-48 |
| 0.9 | 5.560757e-43 |
| 1 | 3.237797e-39 |
| 1.5 | 1.619729e-28 |
| 2 | 2.839127e-23 |
| 2.5 | 6.585525e-20 |
| 3 | 2.000279e-17 |
| 3.5 | 1.824198e-15 |
| 4 | 7.207187e-14 |
| 4.5 | 1.497239e-12 |
| 5 | 1.844804e-11 |
| 6 | 8.083229e-10 |
| 7 | 1.005642e-08 |
| 8 | 5.169116e-08 |
| 9 | 1.488622e-07 |
| 10 | 3.101251e-07 |

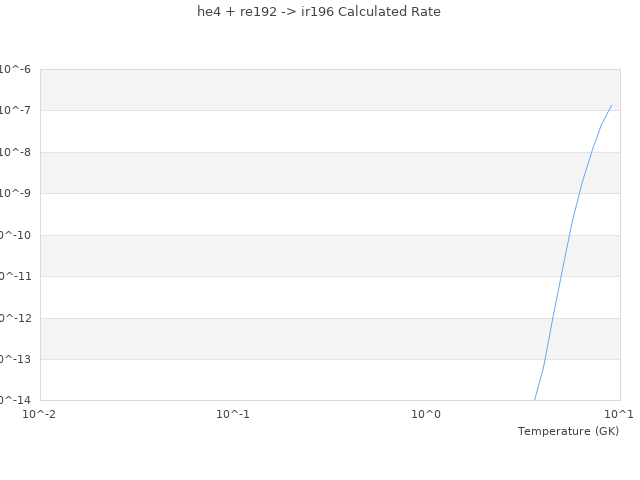

| View Graph | |
