Datapoints for ir196 -> he4 + re192
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-321 |
| 0.15 | 1.217792e-220 |
| 0.2 | 1.822529e-164 |
| 0.3 | 7.694200e-105 |
| 0.4 | 1.985206e-74 |
| 0.5 | 1.803740e-56 |
| 0.6 | 7.356968e-45 |
| 0.7 | 7.308868e-37 |
| 0.8 | 4.387614e-31 |
| 0.9 | 9.553238e-27 |
| 1 | 2.197068e-23 |
| 1.5 | 7.744555e-14 |
| 2 | 4.093160e-09 |
| 2.5 | 4.988572e-06 |
| 3 | 1.037559e-03 |
| 3.5 | 7.483478e-02 |
| 4 | 2.547136e+00 |
| 4.5 | 4.811623e+01 |
| 5 | 5.586953e+02 |
| 6 | 2.322544e+04 |
| 7 | 2.884609e+05 |
| 8 | 1.521182e+06 |
| 9 | 4.563214e+06 |
| 10 | 9.987431e+06 |

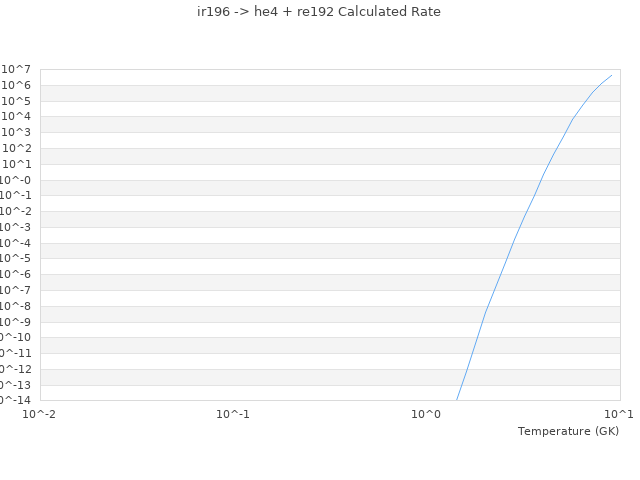

| View Graph | |
