Datapoints for p + re193 -> os194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.062882e-142 |
| 0.15 | 1.940205e-85 |
| 0.2 | 1.325118e-57 |
| 0.3 | 3.836695e-33 |
| 0.4 | 9.842064e-24 |
| 0.5 | 1.440455e-19 |
| 0.6 | 1.567067e-17 |
| 0.7 | 2.013967e-16 |
| 0.8 | 1.007368e-15 |
| 0.9 | 3.390595e-15 |
| 1 | 9.941715e-15 |
| 1.5 | 3.082029e-12 |
| 2 | 2.043098e-09 |
| 2.5 | 9.154082e-07 |
| 3 | 1.463951e-04 |
| 3.5 | 7.031818e-03 |
| 4 | 1.076052e-01 |
| 4.5 | 6.161263e-01 |
| 5 | 1.610569e+00 |
| 6 | 2.375022e+00 |
| 7 | 1.603015e+00 |
| 8 | 1.830666e+00 |
| 9 | 1.034254e+01 |
| 10 | 6.917732e+02 |

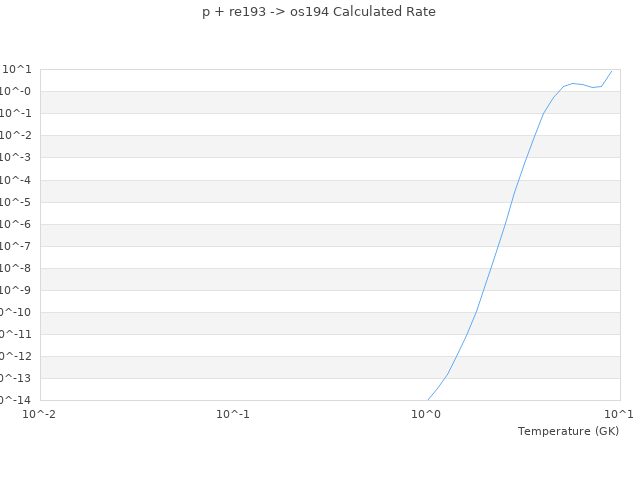

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
