Datapoints for ir198 -> he4 + re194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 6.753725e-267 |
| 0.2 | 1.290081e-205 |
| 0.3 | 3.801097e-138 |
| 0.4 | 6.120896e-102 |
| 0.5 | 1.485927e-79 |
| 0.6 | 1.750947e-64 |
| 0.7 | 9.876340e-54 |
| 0.8 | 9.907140e-46 |
| 0.9 | 1.407879e-39 |
| 1 | 1.012580e-34 |
| 1.5 | 1.149306e-20 |
| 2 | 5.809737e-14 |
| 2.5 | 6.045882e-10 |
| 3 | 3.692283e-07 |
| 3.5 | 4.901696e-05 |
| 4 | 2.549893e-03 |
| 4.5 | 6.966391e-02 |
| 5 | 1.169701e+00 |
| 6 | 1.059433e+02 |
| 7 | 2.782509e+03 |
| 8 | 2.520314e+04 |
| 9 | 8.691820e+04 |
| 10 | 1.222758e+05 |

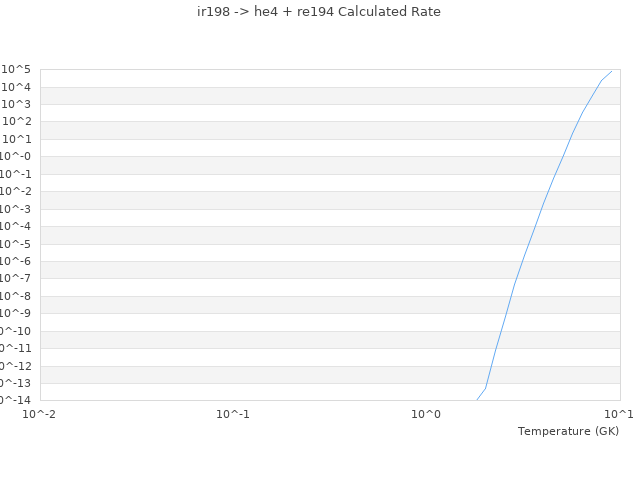

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
