Datapoints for n + re196 -> re197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.334967e+07 |
| 0.15 | 1.104196e+08 |
| 0.2 | 1.251977e+08 |
| 0.3 | 1.333134e+08 |
| 0.4 | 1.285762e+08 |
| 0.5 | 1.196795e+08 |
| 0.6 | 1.099420e+08 |
| 0.7 | 1.005974e+08 |
| 0.8 | 9.205782e+07 |
| 0.9 | 8.440809e+07 |
| 1 | 7.760579e+07 |
| 1.5 | 5.321308e+07 |
| 2 | 3.846447e+07 |
| 2.5 | 2.854839e+07 |
| 3 | 2.135482e+07 |
| 3.5 | 1.590085e+07 |
| 4 | 1.168722e+07 |
| 4.5 | 8.430195e+06 |
| 5 | 5.942941e+06 |
| 6 | 2.726332e+06 |
| 7 | 1.110752e+06 |
| 8 | 3.984195e+05 |
| 9 | 1.252169e+05 |
| 10 | 3.439425e+04 |

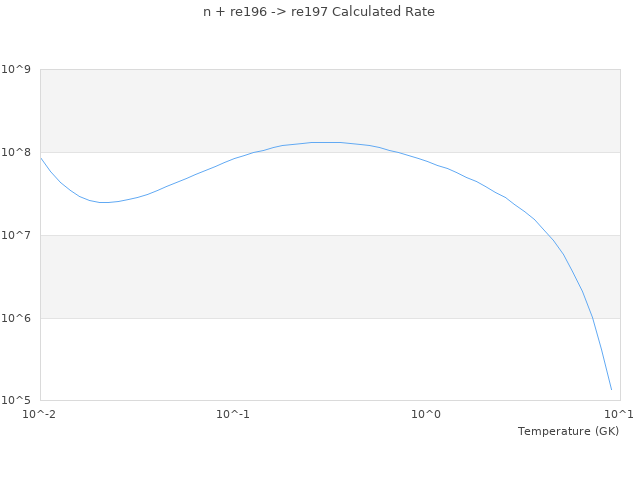

| View Graph | |
