Datapoints for p + re196 -> n + os196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.659293e-141 |
| 0.15 | 3.770573e-83 |
| 0.2 | 4.199022e-55 |
| 0.3 | 1.401733e-30 |
| 0.4 | 3.246511e-21 |
| 0.5 | 4.291484e-17 |
| 0.6 | 4.397460e-15 |
| 0.7 | 5.549495e-14 |
| 0.8 | 2.816663e-13 |
| 0.9 | 9.850154e-13 |
| 1 | 3.049194e-12 |
| 1.5 | 1.335028e-09 |
| 2 | 1.164752e-06 |
| 2.5 | 5.965377e-04 |
| 3 | 9.607927e-02 |
| 3.5 | 4.237849e+00 |
| 4 | 5.629614e+01 |
| 4.5 | 2.733788e+02 |
| 5 | 6.092659e+02 |
| 6 | 7.286663e+02 |
| 7 | 5.218547e+02 |
| 8 | 9.249365e+02 |
| 9 | 1.287307e+04 |
| 10 | 3.578242e+06 |

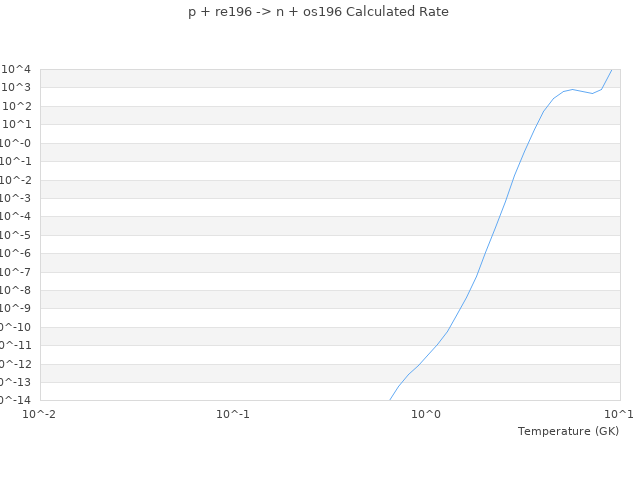

| View Graph | |
