Datapoints for he4 + w193 -> p + re196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-314 |
| 0.3 | 3.284983e-203 |
| 0.4 | 3.032278e-150 |
| 0.5 | 3.824687e-120 |
| 0.6 | 4.802356e-101 |
| 0.7 | 6.042747e-88 |
| 0.8 | 2.069233e-78 |
| 0.9 | 3.903565e-71 |
| 1 | 2.300436e-65 |
| 1.5 | 1.301554e-47 |
| 2 | 1.561668e-37 |
| 2.5 | 1.574727e-30 |
| 3 | 2.698146e-25 |
| 3.5 | 2.771855e-21 |
| 4 | 3.469147e-18 |
| 4.5 | 8.590912e-16 |
| 5 | 6.105074e-14 |
| 6 | 2.337453e-11 |
| 7 | 1.332170e-09 |
| 8 | 4.814651e-08 |
| 9 | 3.412748e-06 |
| 10 | 1.163176e-03 |

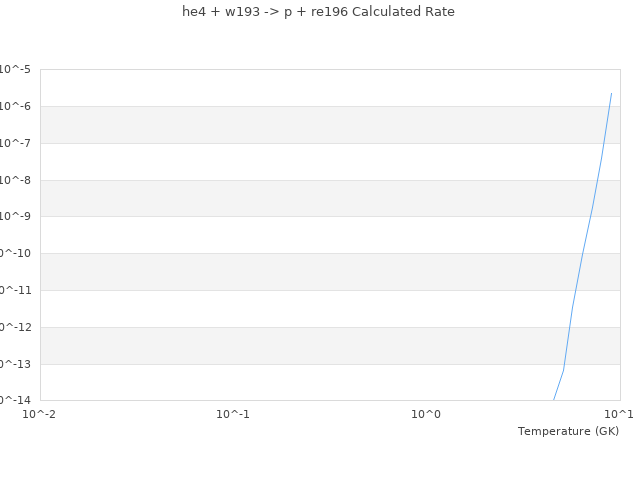

| View Graph | |
