Datapoints for p + re196 -> he4 + w193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.352709e-213 |
| 0.15 | 3.232624e-135 |
| 0.2 | 7.348981e-95 |
| 0.3 | 1.174655e-56 |
| 0.4 | 3.169775e-40 |
| 0.5 | 4.801585e-32 |
| 0.6 | 1.467560e-27 |
| 0.7 | 6.730643e-25 |
| 0.8 | 3.418945e-23 |
| 0.9 | 5.254415e-22 |
| 1 | 4.165407e-21 |
| 1.5 | 5.736699e-18 |
| 2 | 3.395980e-15 |
| 2.5 | 1.414125e-12 |
| 3 | 2.894799e-10 |
| 3.5 | 2.430298e-08 |
| 4 | 8.267302e-07 |
| 4.5 | 1.239871e-05 |
| 5 | 9.349427e-05 |
| 6 | 1.237292e-03 |
| 7 | 6.374659e-03 |
| 8 | 3.798291e-02 |
| 9 | 6.625607e-01 |
| 10 | 7.356064e+01 |

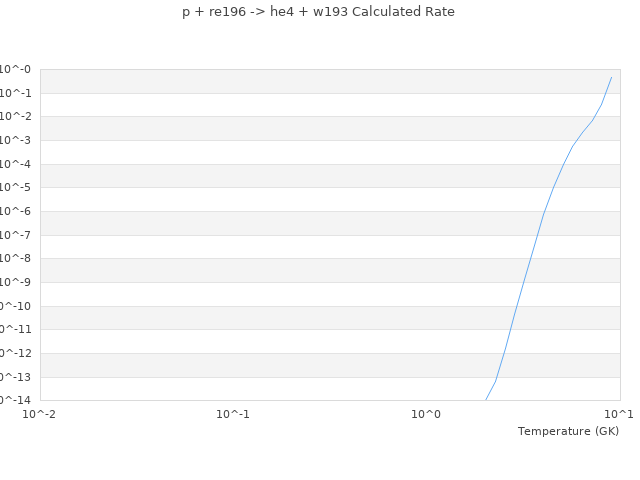

| View Graph | |
