Datapoints for os198 -> p + re197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-314 |
| 0.3 | 7.373252e-201 |
| 0.4 | 5.054841e-147 |
| 0.5 | 3.486954e-116 |
| 0.6 | 2.413734e-96 |
| 0.7 | 1.693394e-82 |
| 0.8 | 3.147912e-72 |
| 0.9 | 3.038525e-64 |
| 1 | 8.453767e-58 |
| 1.5 | 2.636506e-37 |
| 2 | 1.822378e-25 |
| 2.5 | 1.896304e-17 |
| 3 | 9.822227e-12 |
| 3.5 | 1.291534e-07 |
| 4 | 1.146778e-04 |
| 4.5 | 1.362334e-02 |
| 5 | 3.645519e-01 |
| 6 | 1.470811e+01 |
| 7 | 9.789355e+01 |
| 8 | 6.859841e+02 |
| 9 | 2.040864e+04 |
| 10 | 7.563322e+06 |

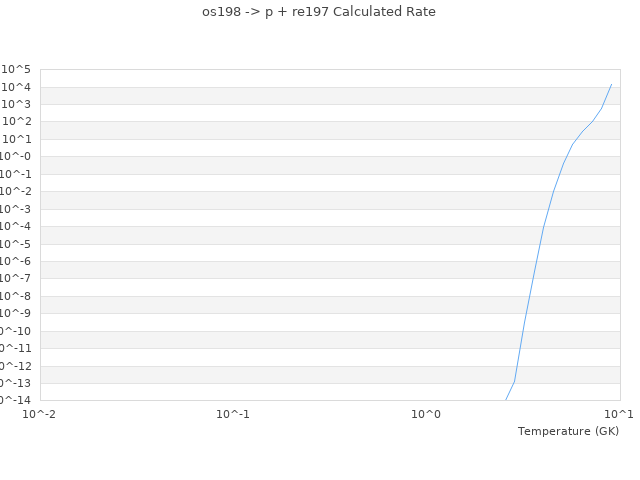

| View Graph | |
