Datapoints for p + re197 -> os198
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.605507e-144 |
| 0.15 | 2.090741e-86 |
| 0.2 | 2.494871e-58 |
| 0.3 | 9.752656e-34 |
| 0.4 | 2.543185e-24 |
| 0.5 | 3.625103e-20 |
| 0.6 | 3.871128e-18 |
| 0.7 | 4.962055e-17 |
| 0.8 | 2.509400e-16 |
| 0.9 | 8.618212e-16 |
| 1 | 2.591296e-15 |
| 1.5 | 8.920812e-13 |
| 2 | 5.703335e-10 |
| 2.5 | 2.090004e-07 |
| 3 | 2.382794e-05 |
| 3.5 | 7.378995e-04 |
| 4 | 6.818819e-03 |
| 4.5 | 2.277046e-02 |
| 5 | 3.440971e-02 |
| 6 | 1.796434e-02 |
| 7 | 5.168992e-03 |
| 8 | 3.343037e-03 |
| 9 | 1.526532e-02 |
| 10 | 1.242233e+00 |

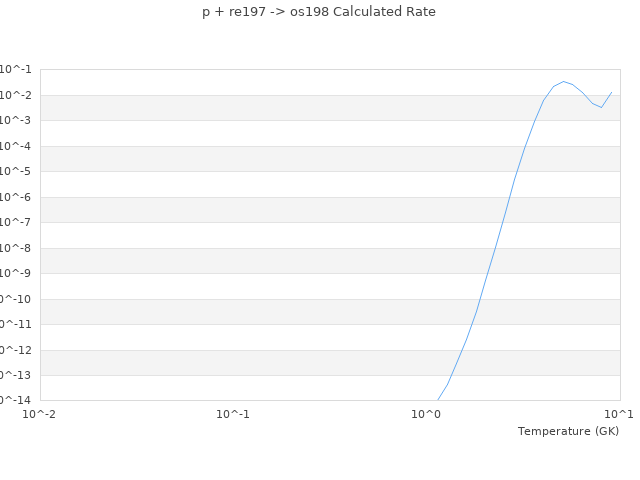

| View Graph | |
