Datapoints for he4 + w194 -> p + re197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 3.674049e-211 |
| 0.4 | 7.125968e-156 |
| 0.5 | 3.577671e-124 |
| 0.6 | 5.987722e-104 |
| 0.7 | 4.759201e-90 |
| 0.8 | 6.088290e-80 |
| 0.9 | 2.940097e-72 |
| 1 | 3.362913e-66 |
| 1.5 | 5.672469e-48 |
| 2 | 4.963216e-38 |
| 2.5 | 2.940071e-31 |
| 3 | 3.363830e-26 |
| 3.5 | 2.851052e-22 |
| 4 | 3.610005e-19 |
| 4.5 | 1.066040e-16 |
| 5 | 1.013780e-14 |
| 6 | 8.077984e-12 |
| 7 | 8.763779e-10 |
| 8 | 4.137101e-08 |
| 9 | 2.096143e-06 |
| 10 | 2.340223e-04 |

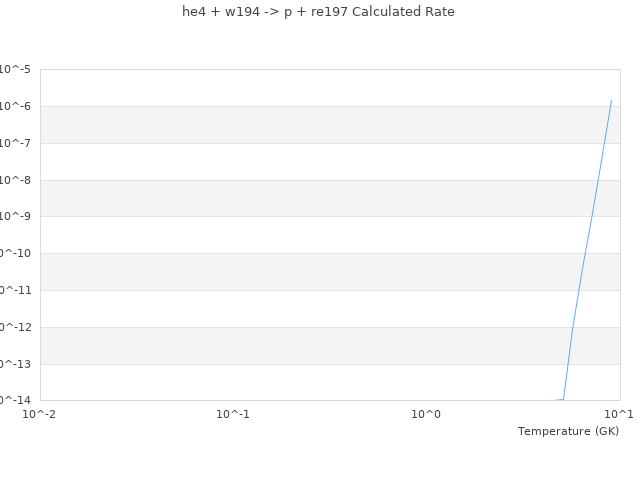

| View Graph | |
