Datapoints for he4 + w196 -> p + re199
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-322 |
| 0.3 | 4.107981e-209 |
| 0.4 | 1.872180e-154 |
| 0.5 | 3.871185e-123 |
| 0.6 | 3.548548e-103 |
| 0.7 | 1.823788e-89 |
| 0.8 | 1.677107e-79 |
| 0.9 | 6.256173e-72 |
| 1 | 5.818832e-66 |
| 1.5 | 5.331051e-48 |
| 2 | 3.523706e-38 |
| 2.5 | 1.806375e-31 |
| 3 | 1.913356e-26 |
| 3.5 | 1.558204e-22 |
| 4 | 1.937701e-19 |
| 4.5 | 5.695874e-17 |
| 5 | 5.438239e-15 |
| 6 | 4.433708e-12 |
| 7 | 4.975218e-10 |
| 8 | 2.443627e-08 |
| 9 | 1.293554e-06 |
| 10 | 1.514656e-04 |

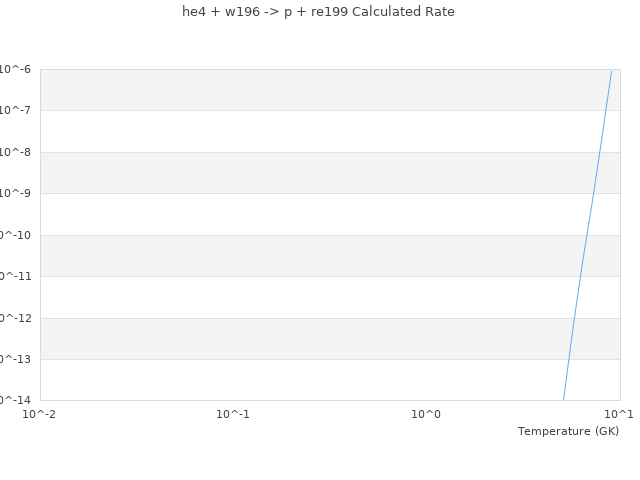

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
