Datapoints for he4 + w197 -> p + re200
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-319 |
| 0.3 | 5.758666e-207 |
| 0.4 | 4.756495e-153 |
| 0.5 | 3.579080e-122 |
| 0.6 | 1.708409e-102 |
| 0.7 | 5.630001e-89 |
| 0.8 | 3.783066e-79 |
| 0.9 | 1.124461e-71 |
| 1 | 8.845253e-66 |
| 1.5 | 5.475036e-48 |
| 2 | 3.215518e-38 |
| 2.5 | 1.551190e-31 |
| 3 | 1.546251e-26 |
| 3.5 | 1.168091e-22 |
| 4 | 1.327340e-19 |
| 4.5 | 3.526459e-17 |
| 5 | 3.026406e-15 |
| 6 | 2.004382e-12 |
| 7 | 1.900977e-10 |
| 8 | 8.475019e-09 |
| 9 | 4.482257e-07 |
| 10 | 5.882205e-05 |

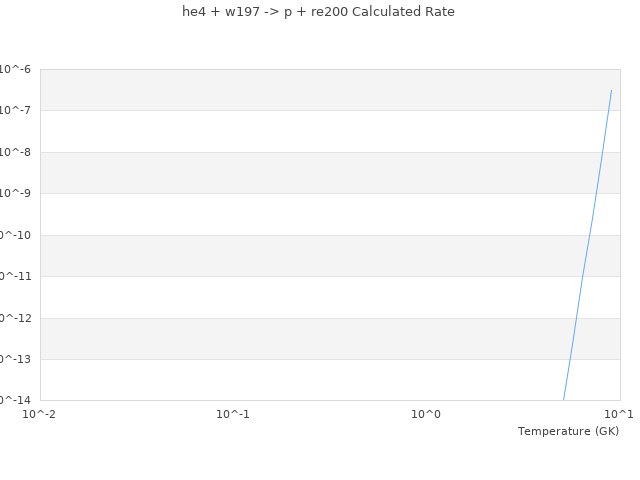

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
