Datapoints for ir206 -> he4 + re202
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 2.761493e-251 |
| 0.2 | 3.928632e-193 |
| 0.3 | 4.403052e-129 |
| 0.4 | 7.574722e-95 |
| 0.5 | 8.474966e-74 |
| 0.6 | 1.042670e-59 |
| 0.7 | 1.033757e-49 |
| 0.8 | 2.609519e-42 |
| 0.9 | 1.210670e-36 |
| 1 | 3.457817e-32 |
| 1.5 | 2.213396e-19 |
| 2 | 2.681414e-13 |
| 2.5 | 1.228829e-09 |
| 3 | 4.404139e-07 |
| 3.5 | 3.963013e-05 |
| 4 | 1.507187e-03 |
| 4.5 | 3.140318e-02 |
| 5 | 4.129724e-01 |
| 6 | 2.436342e+01 |
| 7 | 4.538498e+02 |
| 8 | 3.262331e+03 |
| 9 | 1.033253e+04 |
| 10 | 1.596425e+04 |

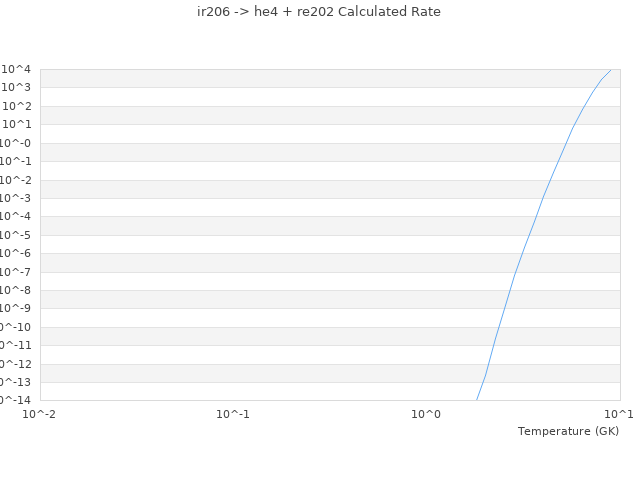

| View Graph | |
