Datapoints for he4 + re209 -> ir213
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 2.012238e-251 |
| 0.2 | 1.868386e-198 |
| 0.3 | 8.900873e-140 |
| 0.4 | 5.124665e-108 |
| 0.5 | 3.341845e-88 |
| 0.6 | 9.854645e-75 |
| 0.7 | 5.015832e-65 |
| 0.8 | 1.000670e-57 |
| 0.9 | 4.714917e-52 |
| 1 | 1.583073e-47 |
| 1.5 | 4.386684e-34 |
| 2 | 1.947971e-27 |
| 2.5 | 2.029010e-23 |
| 3 | 1.099996e-20 |
| 3.5 | 1.108588e-18 |
| 4 | 3.826866e-17 |
| 4.5 | 6.288241e-16 |
| 5 | 5.971923e-15 |
| 6 | 1.637463e-13 |
| 7 | 1.436919e-12 |
| 8 | 5.608050e-12 |
| 9 | 1.202110e-11 |
| 10 | 1.644716e-11 |

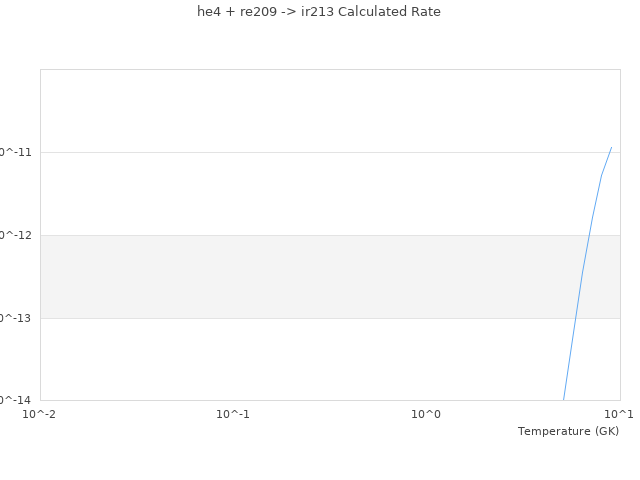

| View Graph | |
