Datapoints for he4 + re212 -> ir216
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 3.627123e-252 |
| 0.2 | 6.690853e-199 |
| 0.3 | 5.293251e-140 |
| 0.4 | 3.512972e-108 |
| 0.5 | 2.400591e-88 |
| 0.6 | 7.263776e-75 |
| 0.7 | 3.801261e-65 |
| 0.8 | 7.865866e-58 |
| 0.9 | 3.882232e-52 |
| 1 | 1.377704e-47 |
| 1.5 | 5.473479e-34 |
| 2 | 3.633197e-27 |
| 2.5 | 5.522707e-23 |
| 3 | 4.175808e-20 |
| 3.5 | 5.588432e-18 |
| 4 | 2.446591e-16 |
| 4.5 | 4.896665e-15 |
| 5 | 5.474210e-14 |
| 6 | 1.924017e-12 |
| 7 | 2.022619e-11 |
| 8 | 9.166225e-11 |
| 9 | 2.277174e-10 |
| 10 | 3.689800e-10 |

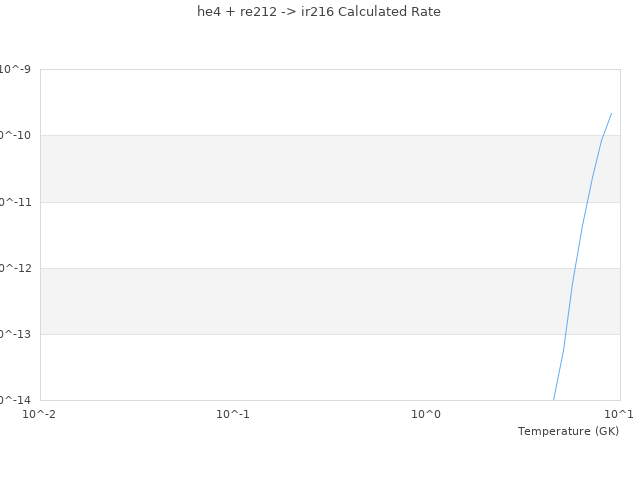

| View Graph | |
