Datapoints for n + re216 -> re217
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.153851e+06 |
| 0.15 | 6.034229e+06 |
| 0.2 | 5.799404e+06 |
| 0.3 | 4.591269e+06 |
| 0.4 | 3.534729e+06 |
| 0.5 | 2.777003e+06 |
| 0.6 | 2.239392e+06 |
| 0.7 | 1.848756e+06 |
| 0.8 | 1.556269e+06 |
| 0.9 | 1.330832e+06 |
| 1 | 1.152489e+06 |
| 1.5 | 6.303016e+05 |
| 2 | 3.760504e+05 |
| 2.5 | 2.285628e+05 |
| 3 | 1.376891e+05 |
| 3.5 | 8.125386e+04 |
| 4 | 4.674301e+04 |
| 4.5 | 2.616867e+04 |
| 5 | 1.425545e+04 |
| 6 | 3.908917e+03 |
| 7 | 9.718592e+02 |
| 8 | 2.212146e+02 |
| 9 | 4.651953e+01 |
| 10 | 9.111216e+00 |

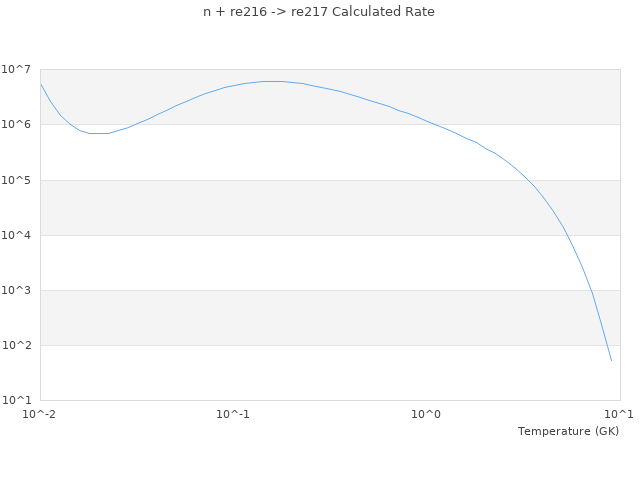

| View Graph | |
