Datapoints for p + re216 -> os217
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.231334e-191 |
| 0.15 | 9.533460e-116 |
| 0.2 | 7.246815e-78 |
| 0.3 | 2.203453e-43 |
| 0.4 | 1.848306e-29 |
| 0.5 | 5.146827e-23 |
| 0.6 | 9.203016e-20 |
| 0.7 | 5.395022e-18 |
| 0.8 | 6.033400e-17 |
| 0.9 | 3.006384e-16 |
| 1 | 1.022799e-15 |
| 1.5 | 1.850998e-13 |
| 2 | 5.405782e-11 |
| 2.5 | 1.279016e-08 |
| 3 | 1.243119e-06 |
| 3.5 | 3.883195e-05 |
| 4 | 3.935947e-04 |
| 4.5 | 1.480354e-03 |
| 5 | 2.493420e-03 |
| 6 | 1.444037e-03 |
| 7 | 3.735305e-04 |
| 8 | 1.738283e-04 |
| 9 | 4.665858e-04 |
| 10 | 1.886716e-02 |

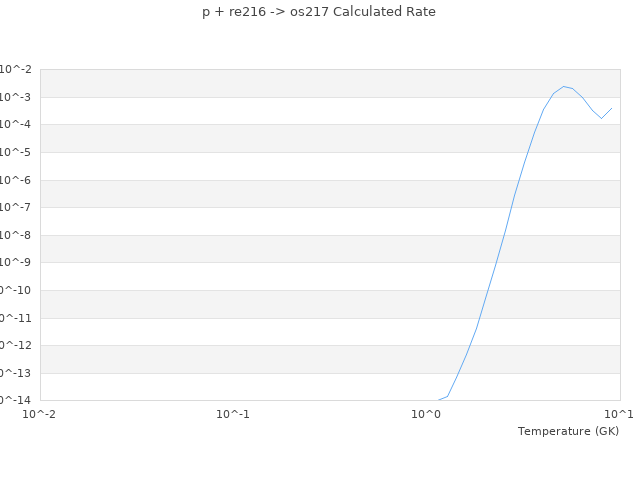

| View Graph | |
