Datapoints for ir220 -> he4 + re216
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 3.676428e-265 |
| 0.3 | 1.350934e-180 |
| 0.4 | 7.132819e-136 |
| 0.5 | 2.909534e-108 |
| 0.6 | 1.414438e-89 |
| 0.7 | 4.006885e-76 |
| 0.8 | 5.364687e-66 |
| 0.9 | 4.143265e-58 |
| 1 | 8.499483e-52 |
| 1.5 | 7.304687e-33 |
| 2 | 2.491891e-23 |
| 2.5 | 1.688701e-17 |
| 3 | 1.653059e-13 |
| 3.5 | 1.401394e-10 |
| 4 | 2.473544e-08 |
| 4.5 | 1.471907e-06 |
| 5 | 3.944323e-05 |
| 6 | 5.150797e-03 |
| 7 | 1.378218e-01 |
| 8 | 1.251948e+00 |
| 9 | 5.313642e+00 |
| 10 | 1.316070e+01 |

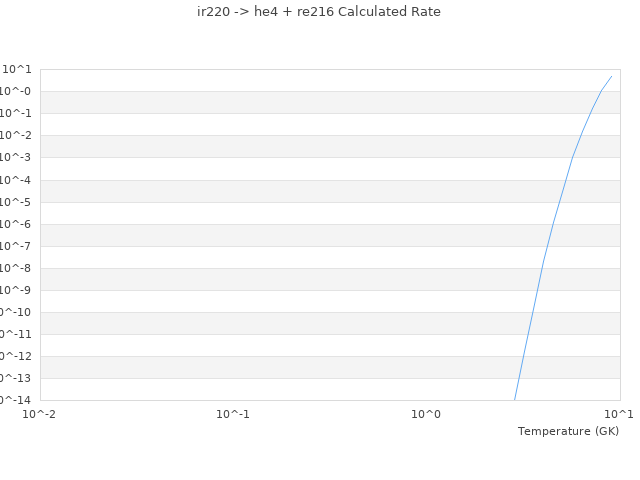

| View Graph | |
