Datapoints for ir223 -> he4 + re219
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 2.314856e-280 |
| 0.3 | 1.541870e-190 |
| 0.4 | 3.527896e-143 |
| 0.5 | 5.550306e-114 |
| 0.6 | 3.100764e-94 |
| 0.7 | 5.049923e-80 |
| 0.8 | 2.519707e-69 |
| 0.9 | 5.429017e-61 |
| 1 | 2.535661e-54 |
| 1.5 | 2.593557e-34 |
| 2 | 3.026190e-24 |
| 2.5 | 4.195636e-18 |
| 3 | 6.449253e-14 |
| 3.5 | 7.356673e-11 |
| 4 | 1.585245e-08 |
| 4.5 | 1.080122e-06 |
| 5 | 3.173970e-05 |
| 6 | 4.609723e-03 |
| 7 | 1.303277e-01 |
| 8 | 1.235503e+00 |
| 9 | 5.535387e+00 |
| 10 | 1.486895e+01 |

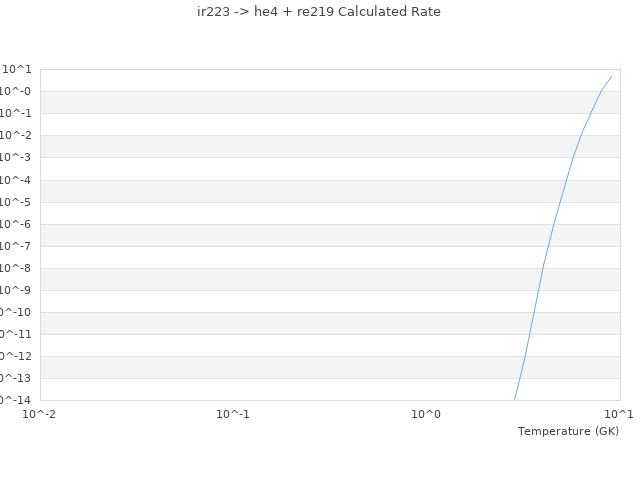

| View Graph | |
