Datapoints for ir224 -> he4 + re220
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.292421e-288 |
| 0.3 | 2.357419e-196 |
| 0.4 | 8.822220e-148 |
| 0.5 | 7.338339e-118 |
| 0.6 | 1.233969e-97 |
| 0.7 | 4.391412e-83 |
| 0.8 | 3.925443e-72 |
| 0.9 | 1.328935e-63 |
| 1 | 8.905567e-57 |
| 1.5 | 2.724840e-36 |
| 2 | 5.713109e-26 |
| 2.5 | 1.175982e-19 |
| 3 | 2.448237e-15 |
| 3.5 | 3.587333e-12 |
| 4 | 9.583990e-10 |
| 4.5 | 7.882024e-08 |
| 5 | 2.733929e-06 |
| 6 | 5.218589e-04 |
| 7 | 1.805103e-02 |
| 8 | 1.954137e-01 |
| 9 | 9.337772e-01 |
| 10 | 2.498643e+00 |

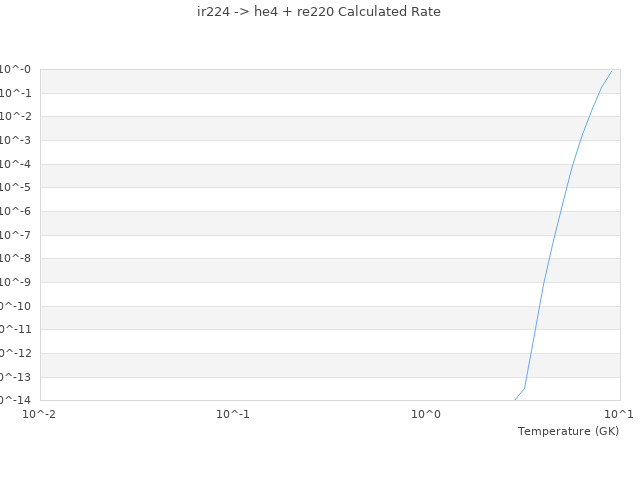

| View Graph | |
