Datapoints for ir227 -> he4 + re223
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 3.875458e-305 |
| 0.3 | 3.423283e-207 |
| 0.4 | 8.945664e-156 |
| 0.5 | 3.793238e-124 |
| 0.6 | 8.796441e-103 |
| 0.7 | 2.046933e-87 |
| 0.8 | 7.507401e-76 |
| 0.9 | 7.643911e-67 |
| 1 | 1.239455e-59 |
| 1.5 | 5.493661e-38 |
| 2 | 4.450033e-27 |
| 2.5 | 2.058609e-20 |
| 3 | 7.286633e-16 |
| 3.5 | 1.540693e-12 |
| 4 | 5.349010e-10 |
| 4.5 | 5.327249e-08 |
| 5 | 2.130302e-06 |
| 6 | 4.916639e-04 |
| 7 | 1.912889e-02 |
| 8 | 2.254609e-01 |
| 9 | 1.163491e+00 |
| 10 | 3.389453e+00 |

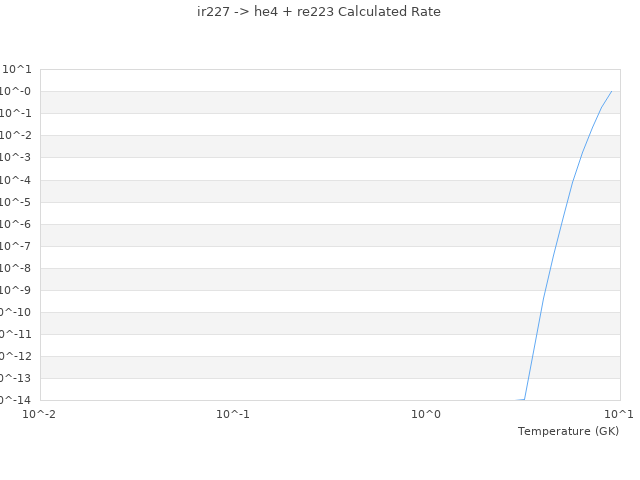

| View Graph | |
