Datapoints for ir232 -> he4 + re228
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-316 |
| 0.3 | 3.088739e-215 |
| 0.4 | 3.536534e-162 |
| 0.5 | 1.461653e-129 |
| 0.6 | 1.547651e-107 |
| 0.7 | 1.063978e-91 |
| 0.8 | 8.778903e-80 |
| 0.9 | 1.677145e-70 |
| 1 | 4.495486e-63 |
| 1.5 | 9.021570e-41 |
| 2 | 1.586964e-29 |
| 2.5 | 1.203301e-22 |
| 3 | 6.095292e-18 |
| 3.5 | 1.708745e-14 |
| 4 | 7.492887e-12 |
| 4.5 | 9.108805e-10 |
| 5 | 4.331137e-08 |
| 6 | 1.328354e-05 |
| 7 | 6.410203e-04 |
| 8 | 8.813245e-03 |
| 9 | 5.005528e-02 |
| 10 | 1.516349e-01 |

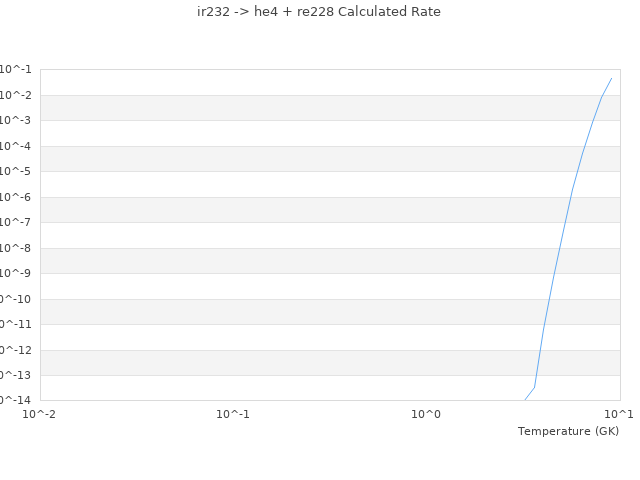

| View Graph | |
