Datapoints for ir236 -> he4 + re232
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 1.646529e-232 |
| 0.4 | 4.156178e-175 |
| 0.5 | 7.069386e-140 |
| 0.6 | 4.169434e-116 |
| 0.7 | 5.070868e-99 |
| 0.8 | 3.607029e-86 |
| 0.9 | 3.675271e-76 |
| 1 | 3.752399e-68 |
| 1.5 | 4.073776e-44 |
| 2 | 5.146014e-32 |
| 2.5 | 1.256813e-24 |
| 3 | 1.379965e-19 |
| 3.5 | 6.708911e-16 |
| 4 | 4.447462e-13 |
| 4.5 | 7.469235e-11 |
| 5 | 4.610575e-09 |
| 6 | 2.108017e-06 |
| 7 | 1.366461e-04 |
| 8 | 2.363735e-03 |
| 9 | 1.614856e-02 |
| 10 | 5.691948e-02 |

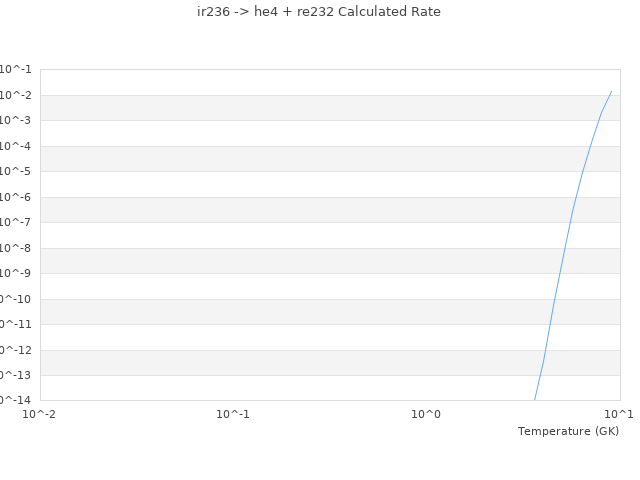

| View Graph | |
