Datapoints for ir252 -> he4 + re248
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | INFe-316 |
| 0.4 | 1.143392e-237 |
| 0.5 | 7.178134e-190 |
| 0.6 | 1.018648e-157 |
| 0.7 | 1.199641e-134 |
| 0.8 | 2.624148e-117 |
| 0.9 | 8.241861e-104 |
| 1 | 5.185677e-93 |
| 1.5 | 1.300251e-60 |
| 2 | 2.543818e-44 |
| 2.5 | 2.117119e-34 |
| 3 | 1.188686e-27 |
| 3.5 | 1.002856e-22 |
| 4 | 5.864350e-19 |
| 4.5 | 5.514071e-16 |
| 5 | 1.379774e-13 |
| 6 | 5.327920e-10 |
| 7 | 1.594927e-07 |
| 8 | 8.407130e-06 |
| 9 | 1.279125e-04 |
| 10 | 7.793772e-04 |

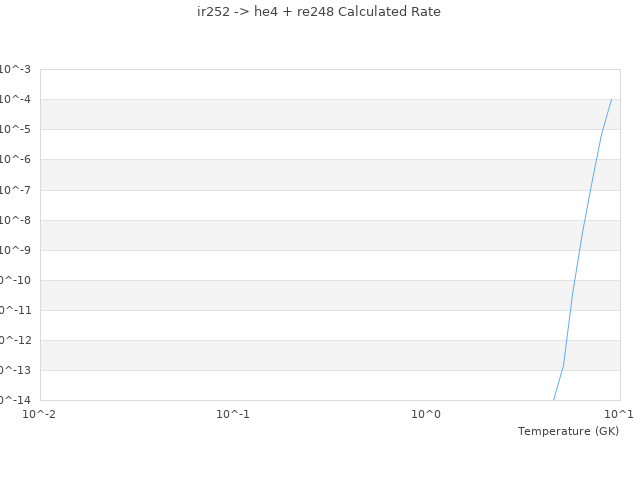

| View Graph | |
