Datapoints for pt172 -> he4 + os168
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-316 |
| 0.15 | 4.802606e-197 |
| 0.2 | 3.904636e-133 |
| 0.3 | 5.111253e-69 |
| 0.4 | 3.936952e-39 |
| 0.5 | 3.894972e-23 |
| 0.6 | 7.717377e-14 |
| 0.7 | 3.969742e-08 |
| 0.8 | 1.789397e-04 |
| 0.9 | 4.651157e-02 |
| 1 | 2.040609e+00 |
| 1.5 | 5.724156e+03 |
| 2 | 1.209771e+05 |
| 2.5 | 1.514937e+06 |
| 3 | 1.804860e+07 |
| 3.5 | 1.872636e+08 |
| 4 | 1.499119e+09 |
| 4.5 | 8.615292e+09 |
| 5 | 3.469058e+10 |
| 6 | 2.057630e+11 |
| 7 | 4.191902e+11 |
| 8 | 4.482348e+11 |
| 9 | 3.922041e+11 |
| 10 | 4.271615e+11 |

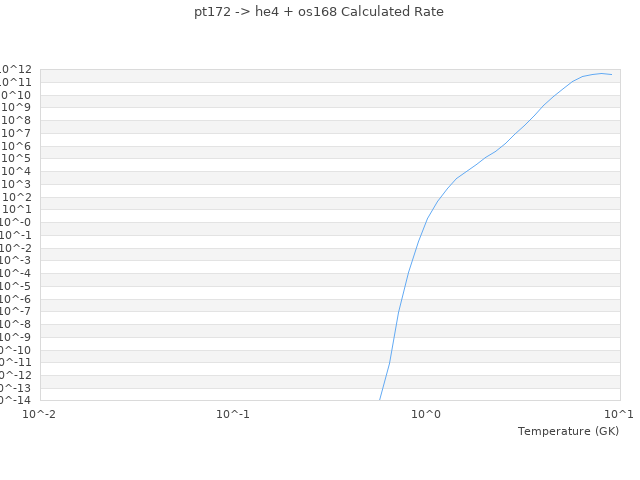

| View Graph | |
