Datapoints for p + os175 -> ir176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.996856e-139 |
| 0.15 | 8.380729e-83 |
| 0.2 | 2.378375e-55 |
| 0.3 | 4.260697e-31 |
| 0.4 | 1.170764e-21 |
| 0.5 | 2.119861e-17 |
| 0.6 | 2.929533e-15 |
| 0.7 | 4.721413e-14 |
| 0.8 | 2.885805e-13 |
| 0.9 | 1.152885e-12 |
| 1 | 3.900046e-12 |
| 1.5 | 1.753519e-09 |
| 2 | 1.160715e-06 |
| 2.5 | 4.265257e-04 |
| 3 | 5.057313e-02 |
| 3.5 | 1.719014e+00 |
| 4 | 1.835271e+01 |
| 4.5 | 7.375605e+01 |
| 5 | 1.379137e+02 |
| 6 | 1.136501e+02 |
| 7 | 4.962659e+01 |
| 8 | 4.318452e+01 |
| 9 | 2.204175e+02 |
| 10 | 1.581365e+04 |

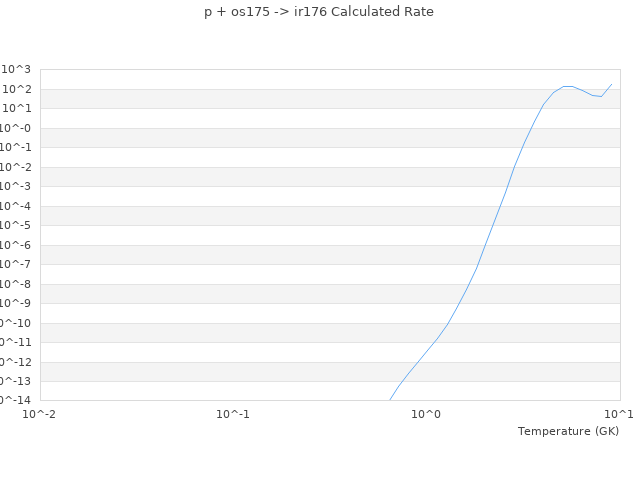

| View Graph | |
