Datapoints for p + os193 -> ir194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.114577e-143 |
| 0.15 | 4.064796e-86 |
| 0.2 | 4.240363e-58 |
| 0.3 | 2.061921e-33 |
| 0.4 | 7.249264e-24 |
| 0.5 | 1.313103e-19 |
| 0.6 | 1.663381e-17 |
| 0.7 | 2.390844e-16 |
| 0.8 | 1.299951e-15 |
| 0.9 | 4.657270e-15 |
| 1 | 1.430439e-14 |
| 1.5 | 4.832331e-12 |
| 2 | 3.081566e-09 |
| 2.5 | 1.260146e-06 |
| 3 | 1.799186e-04 |
| 3.5 | 7.664826e-03 |
| 4 | 1.042538e-01 |
| 4.5 | 5.345592e-01 |
| 5 | 1.264979e+00 |
| 6 | 1.592266e+00 |
| 7 | 9.761131e-01 |
| 8 | 1.082667e+00 |
| 9 | 6.366601e+00 |
| 10 | 4.754048e+02 |

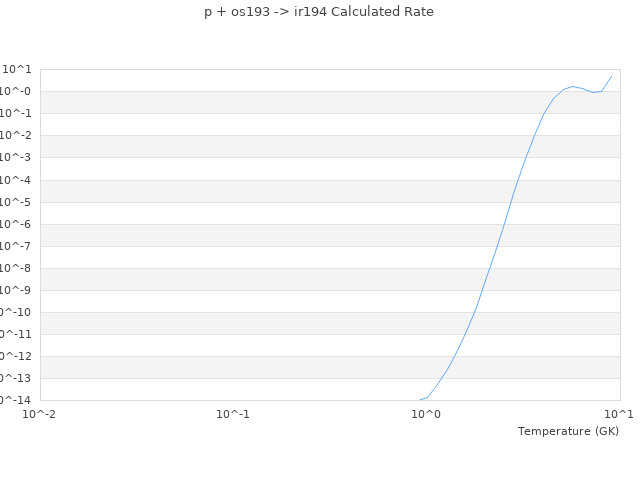

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
