Datapoints for p + os196 -> n + ir196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.021550e-143 |
| 0.15 | 4.202840e-85 |
| 0.2 | 8.651705e-57 |
| 0.3 | 6.391042e-32 |
| 0.4 | 2.471108e-22 |
| 0.5 | 4.714551e-18 |
| 0.6 | 6.385227e-16 |
| 0.7 | 1.004615e-14 |
| 0.8 | 6.099967e-14 |
| 0.9 | 2.475347e-13 |
| 1 | 8.686706e-13 |
| 1.5 | 5.749047e-10 |
| 2 | 6.277997e-07 |
| 2.5 | 3.680553e-04 |
| 3 | 6.462766e-02 |
| 3.5 | 3.019481e+00 |
| 4 | 4.173679e+01 |
| 4.5 | 2.085237e+02 |
| 5 | 4.747169e+02 |
| 6 | 5.856230e+02 |
| 7 | 4.301358e+02 |
| 8 | 7.824089e+02 |
| 9 | 1.122111e+04 |
| 10 | 3.233024e+06 |

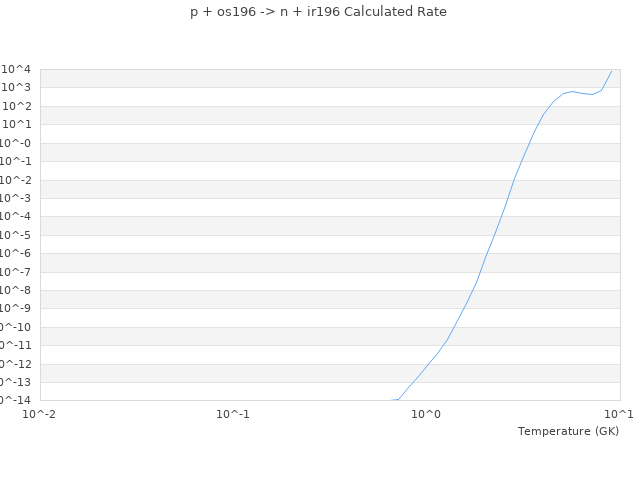

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
