Datapoints for p + os199 -> ir200
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.982765e-146 |
| 0.15 | 6.092974e-88 |
| 0.2 | 1.460642e-59 |
| 0.3 | 1.154517e-34 |
| 0.4 | 4.299028e-25 |
| 0.5 | 7.655178e-21 |
| 0.6 | 9.585779e-19 |
| 0.7 | 1.391940e-17 |
| 0.8 | 7.808780e-17 |
| 0.9 | 2.933694e-16 |
| 1 | 9.552902e-16 |
| 1.5 | 4.468097e-13 |
| 2 | 3.527812e-10 |
| 2.5 | 1.498335e-07 |
| 3 | 1.888787e-05 |
| 3.5 | 6.241611e-04 |
| 4 | 5.993248e-03 |
| 4.5 | 2.039576e-02 |
| 5 | 3.098588e-02 |
| 6 | 1.599068e-02 |
| 7 | 4.521828e-03 |
| 8 | 2.919851e-03 |
| 9 | 1.374146e-02 |
| 10 | 1.204147e+00 |

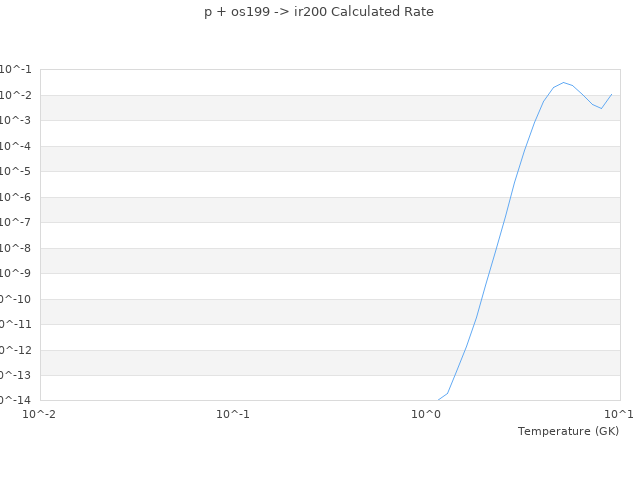

| View Graph | |
