Datapoints for p + os202 -> n + ir202
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.092320e-144 |
| 0.15 | 1.519036e-85 |
| 0.2 | 5.466322e-57 |
| 0.3 | 6.104959e-32 |
| 0.4 | 2.598150e-22 |
| 0.5 | 4.952145e-18 |
| 0.6 | 6.494976e-16 |
| 0.7 | 9.817609e-15 |
| 0.8 | 5.732021e-14 |
| 0.9 | 2.245745e-13 |
| 1 | 7.647167e-13 |
| 1.5 | 4.647143e-10 |
| 2 | 4.969757e-07 |
| 2.5 | 2.923137e-04 |
| 3 | 5.179833e-02 |
| 3.5 | 2.438369e+00 |
| 4 | 3.382400e+01 |
| 4.5 | 1.689089e+02 |
| 5 | 3.832045e+02 |
| 6 | 4.682136e+02 |
| 7 | 3.432036e+02 |
| 8 | 6.356420e+02 |
| 9 | 9.572246e+03 |
| 10 | 3.013219e+06 |

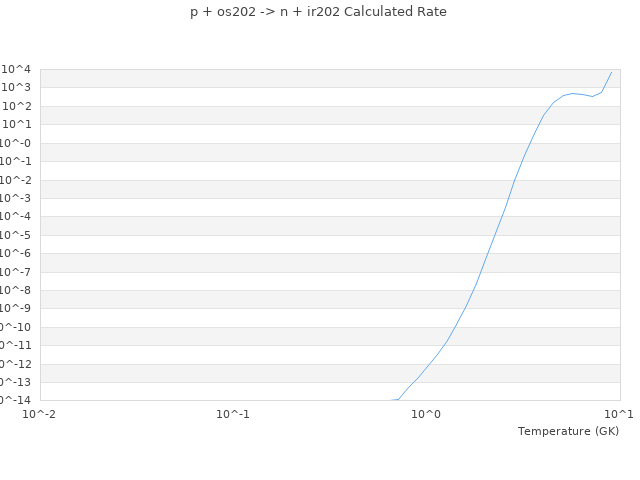

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
