Datapoints for he4 + re200 -> p + os203
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-318 |
| 0.3 | 2.029516e-206 |
| 0.4 | 2.278208e-152 |
| 0.5 | 2.131119e-121 |
| 0.6 | 1.191274e-101 |
| 0.7 | 4.413758e-88 |
| 0.8 | 3.240283e-78 |
| 0.9 | 1.030702e-70 |
| 1 | 8.544663e-65 |
| 1.5 | 6.041199e-47 |
| 2 | 3.674272e-37 |
| 2.5 | 1.770883e-30 |
| 3 | 1.736585e-25 |
| 3.5 | 1.280484e-21 |
| 4 | 1.413204e-18 |
| 4.5 | 3.631989e-16 |
| 5 | 3.003487e-14 |
| 6 | 1.823544e-11 |
| 7 | 1.554413e-09 |
| 8 | 6.086809e-08 |
| 9 | 2.755612e-06 |
| 10 | 3.010217e-04 |

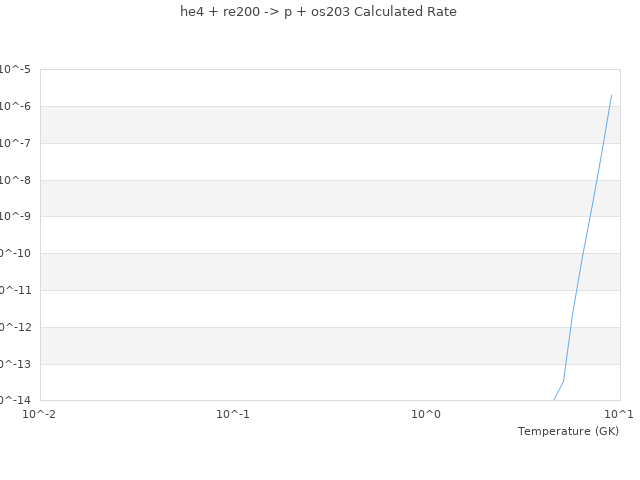

| View Graph | |
