Datapoints for p + os206 -> n + ir206
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.252238e-145 |
| 0.15 | 5.896880e-86 |
| 0.2 | 3.253542e-57 |
| 0.3 | 5.177081e-32 |
| 0.4 | 2.494289e-22 |
| 0.5 | 4.999465e-18 |
| 0.6 | 6.713264e-16 |
| 0.7 | 1.028773e-14 |
| 0.8 | 6.070197e-14 |
| 0.9 | 2.402262e-13 |
| 1 | 8.266919e-13 |
| 1.5 | 5.346761e-10 |
| 2 | 6.090899e-07 |
| 2.5 | 3.765881e-04 |
| 3 | 6.893005e-02 |
| 3.5 | 3.295364e+00 |
| 4 | 4.575104e+01 |
| 4.5 | 2.260136e+02 |
| 5 | 5.028562e+02 |
| 6 | 5.820365e+02 |
| 7 | 4.023617e+02 |
| 8 | 7.105741e+02 |
| 9 | 1.044249e+04 |
| 10 | 3.314788e+06 |

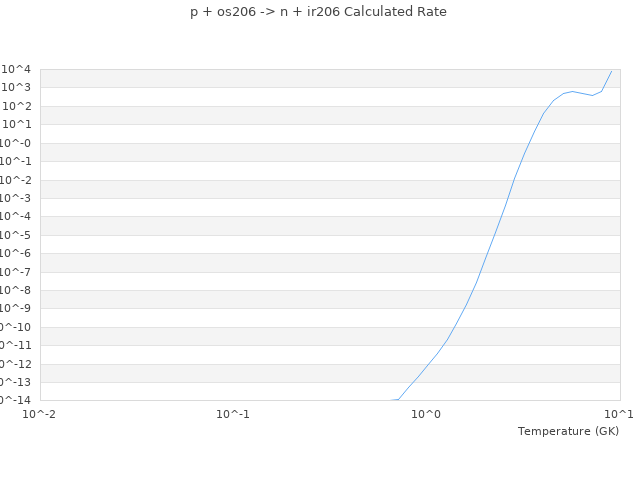

| View Graph | |
