Datapoints for p + os213 -> ir214
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.147285e-192 |
| 0.15 | 1.079032e-116 |
| 0.2 | 1.250434e-78 |
| 0.3 | 5.849965e-44 |
| 0.4 | 6.092632e-30 |
| 0.5 | 1.935706e-23 |
| 0.6 | 3.792571e-20 |
| 0.7 | 2.383024e-18 |
| 0.8 | 2.818814e-17 |
| 0.9 | 1.472824e-16 |
| 1 | 5.222222e-16 |
| 1.5 | 1.102229e-13 |
| 2 | 3.565316e-11 |
| 2.5 | 9.036794e-09 |
| 3 | 9.177903e-07 |
| 3.5 | 2.939118e-05 |
| 4 | 3.009749e-04 |
| 4.5 | 1.131197e-03 |
| 5 | 1.888886e-03 |
| 6 | 1.060003e-03 |
| 7 | 2.640307e-04 |
| 8 | 1.189523e-04 |
| 9 | 3.134831e-04 |
| 10 | 1.270634e-02 |

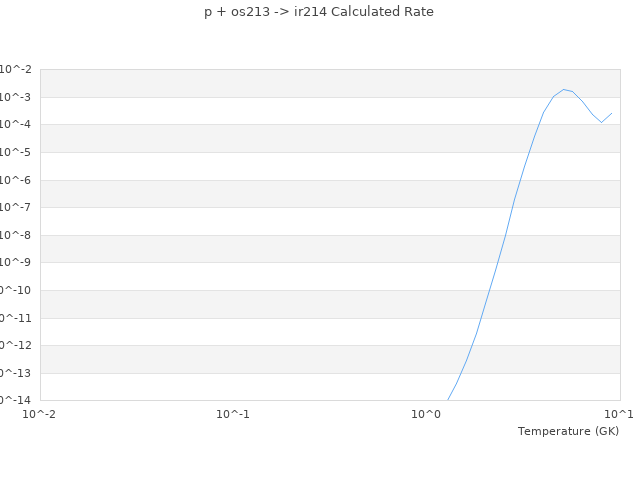

| View Graph | |
